Thunder Sound TS2210 Line Array

Thunder Sound TS2210 Line Array

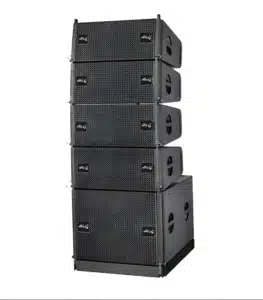

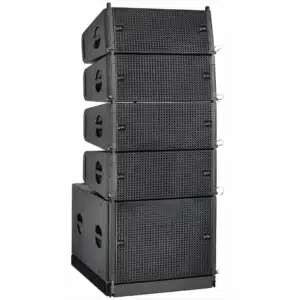

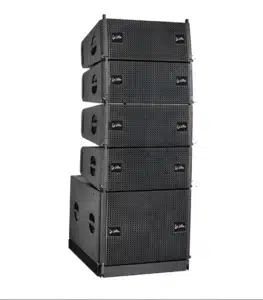

The Thunder Sound TS2210 Line Array is a powerful 10-inch, two-way line array system designed for demanding all-weather applications. Known for its compact structure and high sound pressure levels, this model provides exceptional audio quality across a range of venues, from mobile events to theaters and stadiums. Equipped with a newly developed DPS digital power amplifier module, the TS2210 ensures enhanced audio precision and reliability.

This line array system offers a flexible array of hoisting modes, allowing for convenient transportation, stacking, and installation to suit various setup needs. Built with durability in mind, the cabinet features a high-grade black polyurea paint that is both waterproof and wear-resistant. The hanging parts and grilles are rigorously tested for tensile strength and salt spray, ensuring reliability in all weather conditions. The magnetic suspension system adds to the TS2210’s user-friendly design, enabling safe, quiet, and fast hoisting without abnormal noise. Overall, the TS2210 is engineered for robust, adaptable performance in any professional sound setting.

Frequency Range: The system supports a wide frequency response from 65Hz to 18kHz ±3dB, ensuring excellent coverage for both low and high frequencies.

Power Handling:

LF (Low Frequency): Rated at 700W RMS and peaking at 2800W.
HF (High Frequency): Rated at 100W RMS, peaking at 400W.
Sound Quality:

Sensitivity: LF reaches 103dB (1W/1M), and HF peaks at 105dB (1W/1M), ensuring superior clarity and projection.
Maximum SPL: The system is capable of producing up to 135dB (Peak), perfect for large venues and outdoor performances.
Drivers:

LF Driver: Two 10-inch (260mm) neodymium woofers with 75mm (3-inch) voice coils for robust bass output.
HF Driver: A 75mm (3-inch) neodymium compression driver with a titanium diaphragm for crisp highs.
Coverage & Connectivity:

Coverage pattern: Offers an 80° horizontal by 10° vertical dispersion.

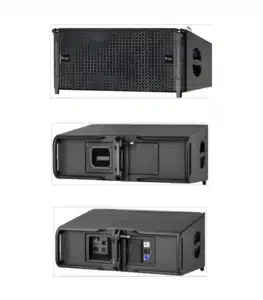

Connections: Equipped with 2 NL4MP Neutrik connectors for reliable signal transmission.
Build & Design:

Constructed from durable birch plywood with a textured, high-density polyurethane coating for enhanced durability.
Compact and portable dimensions (700 x 310 x 520mm).
Integrated Amplification:

Powered by a built-in DSP module delivering 900W RMS at 8 ohms.
Features a switching mode amplifier with a Class D circuit for efficient power management.
Weight: The system weighs 38kg, making it relatively lightweight for its category.
