Martin Audio F12 Speaker

Martin Audio F12 speakers 12 inch speakers and 12” sound system speakers for live Show

The Martin F12 blackline passive speaker is the ideal choice for full range applications calling for an efficient, reliable workhorse that is equally suitable for fixed installations or quick deployment mobile operations.

ergonomic design

Its ergonomic design and rotatable HF horn makes near-ceiling mounting and aiming easy in venues with restricted height, whilst its multi-angle birch ply cabinet also allows it to be used as a highly intelligible floor monitor.

variety of mounting methods

Ten M8 inserts and four M8 bracket inserts make a variety of mounting methods possible including horizontal or vertical mounting.

Martin F12 blackline speakers Features

Compact two-way passive system

Top hat fitting for speaker stand mounting

MARTIN AUDIO F12 SPEAKERS (PAIR)

TYPE

Compact, two-way passive

FREQUENCY RESPONSE (5)

65Hz-18kHz ± 3dB -10dB @ 55Hz

DRIVERS

12” (300mm)/2.5” (63.5mm) voice coil LF driver 1” (25mm) exit HF compression driver

RATED POWER (2)

300W AES, 1200W peak

RECOMMENDED AMPLIFIER

MA2.0

SENSITIVITY (6)

97dB

MAXIMUM SPL (9)

122dB continuous, 128dB peak

NOMINAL IMPEDANCE

8 ohms

DISPERSION

(-6dB) 80? horizontal, 50? vertical

CROSSOVER

2.2 kHz passive

ENCLOSURE

38 litres, multi-laminate birch ply

FINISH

Textured black paint

PROTECTIVE GRILLE

Black perforated steel

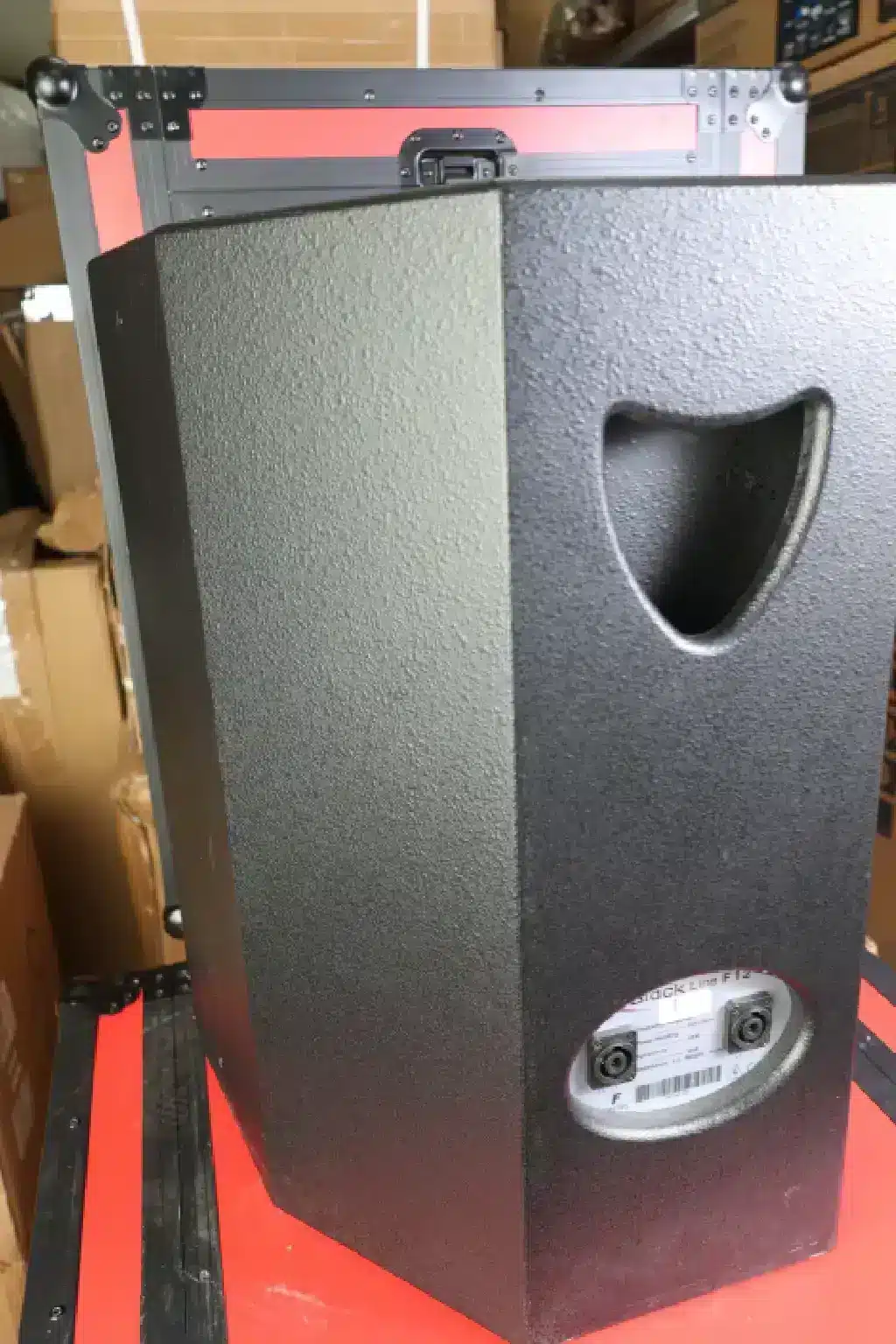

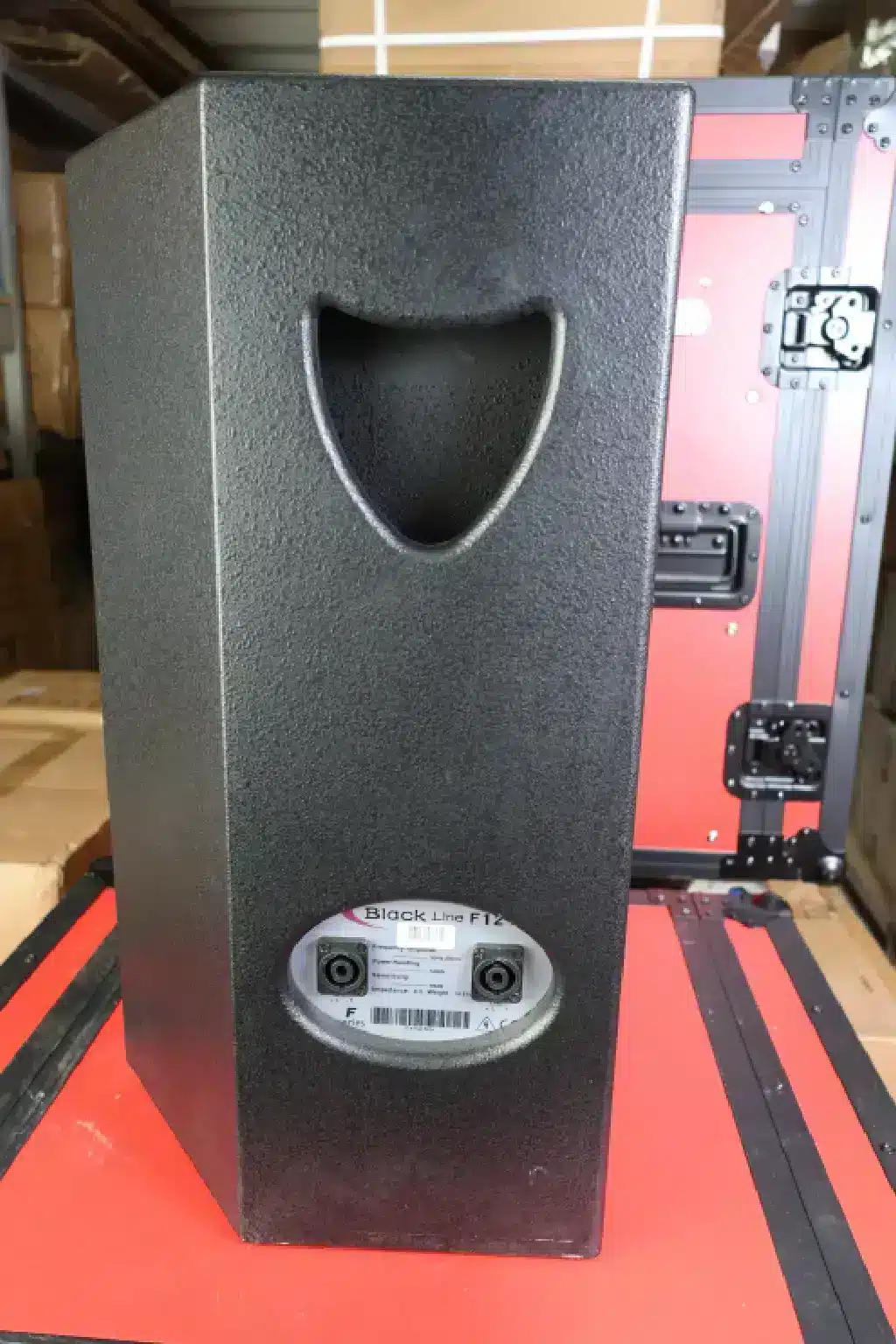

CONNECTORS

2 x Neutrik NL4

PIN CONNECTIONS

FR+,- : 1+,1- , Link thro’: 2+,2-

FITTINGS

10 x M8, 4 x M8 threaded inserts 1 x mounting pole socket 1 x pocket handle

DIMENSIONS

(W) 398mm x (H) 571mm x (D) 365mm (W) 15.6ins x (H) 22.5ins x (D) 14.3ins

WEIGHT

21kg (46lbs)

They are great church speakers. Order yours at affordable prices at our stores available in Nairobi Kenya

The Martin Audio F12 speaker offers quality Sound. If you are looking for Speakers with bass, this is your Speaker. The Speaker has the best bass speakers price in Kenya. The Martin Audio F12 Speaker price in Kenya is affordable and worth every penny in comparison to what it brings to the table

Aesthetics

The Martin Audio F12 speaker boasts a sleek and professional design, typical of the brand’s commitment to both form and function. The cabinet is constructed from durable plywood, providing a solid foundation that minimizes resonance and enhances sound clarity. The exterior is finished with a tough, wear-resistant paint that not only protects the speaker from the rigors of touring and installation but also gives it a sophisticated appearance.

Construction

The F12’s cabinet is designed to be both robust and acoustically optimized. It features internal bracing that reinforces the structure, reducing unwanted vibrations and ensuring the integrity of the sound output. The front of the speaker is protected by a perforated steel grille, which is coated with a foam backing to safeguard the drivers while maintaining sonic transparency.

Despite its sturdy construction, the Martin Audio F12 is relatively lightweight for a speaker of its class, weighing in at around 22.5 kg (49.6 lbs). It is equipped with ergonomic handles that make it easier to carry and position. Additionally, the speaker’s trapezoidal shape allows for flexible placement options, including use as a floor monitor or on a pole mount.

Drivers

The F12 is a two-way passive loudspeaker, featuring a 12-inch (300mm) low-frequency driver and a 1-inch (25mm) exit compression driver. The low-frequency driver is designed to deliver deep, punchy bass, while the compression driver handles the mid and high frequencies with precision and clarity. This combination ensures a balanced and dynamic sound across the frequency spectrum.

Frequency Response

The speaker’s frequency response ranges from 65 Hz to 18 kHz (±3 dB), providing ample coverage for most musical applications. The F12 is capable of producing a full and rich sound, with sufficient low-end extension to satisfy bass-heavy genres and enough high-end detail to reproduce vocals and instruments accurately.

The Martin Audio F12 has a power handling capacity of 300 watts RMS (1200 watts peak), making it suitable for medium to large venues. Its high sensitivity rating of 98 dB (1W @ 1m) ensures that it can deliver loud and clear sound with relatively low amplifier power, making it an efficient choice for various sound reinforcement applications.

The speaker features a 80° x 50° dispersion pattern, providing wide horizontal coverage and controlled vertical dispersion. This pattern is ideal for achieving uniform sound distribution in a variety of environments, from intimate clubs to larger halls. The constant directivity horn ensures that the high frequencies are evenly spread, reducing hotspots and ensuring a consistent listening experience throughout the venue.

Clarity and Detail

One of the standout features of the Martin Audio F12 is its remarkable clarity and detail. The speaker excels at reproducing both vocals and instruments with a high degree of accuracy. The midrange is particularly impressive, providing a natural and uncolored sound that makes it easy to distinguish between different elements in the mix. The high frequencies are crisp and well-defined, without being harsh or sibilant.

Bass Response

The 12-inch woofer in the F12 delivers a solid and punchy bass response. While the speaker’s low-end extension is not as deep as some larger subs, it is more than adequate for most applications, especially when paired with a subwoofer for extended low-frequency support. The bass is tight and controlled, avoiding the boominess that can sometimes plague lesser designs.

Power and Projection

Thanks to its high sensitivity and robust power handling, the F12 can produce impressive SPL levels, making it suitable for medium to large venues. The speaker projects sound effectively, ensuring that the audio remains clear and intelligible even at the back of the room. The controlled dispersion pattern helps to minimize unwanted reflections and ensures that the sound is directed where it is needed most.

Versatility

The Martin Audio F12 is a versatile speaker that excels in a variety of applications. It is equally at home in live sound reinforcement, DJ setups, and installed sound systems. Its balanced frequency response and wide coverage pattern make it a reliable choice for both front-of-house and monitoring applications. Whether used as a standalone speaker or as part of a larger system, the F12 delivers consistent and high-quality sound.

In terms of value for money, the F12 is a solid investment for professionals seeking a reliable and high-performing speaker. While it may be priced slightly higher than some competitors, its durability and sound quality justify the additional cost. The speaker’s efficiency and power handling also mean that fewer units may be needed to achieve the desired coverage and SPL levels, potentially reducing overall system costs.
