JBL vrx 935 speaker
12 in. Two-Way Powered Line Array Loudspeaker System
The VRX935LAP is a powered, lightweight, compact 12″ two-way line-array speaker system designed for use in arrays of up to five units. VRX935LAP is the ideal choice when line-array performance is needed but the venue size doesn’t call for the very long-throw characteristics of larger line-arrays and a fast and easy setup is vital.
KSh 110,000.00
Out of stock
Out of stock
Description
JBL vrx 935 speaker
The VRX935LAP is a powered, lightweight, compact 12″ two-way line-array speaker system designed for use in arrays of up to five units. VRX935LAP is the ideal choice when line-array performance is needed but the venue size doesn’t call for the very long-throw characteristics of larger line-arrays and a fast and easy setup is vital.
Features
- Built-in JBL Drivepack® DPC-2 amplifier module designed by Crown provides 1750 Watts of peak Power. DSP based resident input module provides system optimization and EQ functionality.
- JBL’s exclusive neodymium magned Differential Drive® woofer for high-power capacity and light-weight.
- VRX932LAP features 3 x 2408J Annular Ring Diaphragm HF drivers. The 2408 represents the latest in JBL Professional compression driver design.
- Constant Curvature waveguide for unprecedented array coherence.
- Integral rigging hardware for simple connection of enclosures and optional array frame. Dual angle pole socket for aiming flexibility.
- Array Configuration Selector permits “array shading”.
Specifications
| Power Rating | 1750 Watts Peak875 Watts Continuous |
| Frequency Range (-10dB) | 57 Hz – 20 kHz |
| Dimensions (H x W x D) | 349 mm x 597 mm x 444 mm(13.75 in x 23.5 in x 17.5 in) |
| Frequency Response | 75 Hz – 20 kHz (+/-3db) |
| Maximum SPL (1m) | 136 dB SPL |
| Coverage Pattern | 100 x 15 nominal |
| DPC-2 Output as (Continuous IED shaped pink noise into rated load impedance) | LF: 750 Watts, HF: 125 Watts |
| DPC-2 Output Section | LF: Dual-Bridged Technology™, Class D |
| Inputs | XLR with loop through |
| LF Driver | 1 x JBL 2262FF 305 mm (12 in) neodymium magnet |
| HF Driver | 3 x JBL 2408J, 38 mm (1.5 in) |
| User Controls | Input Attenuator (0-16 dB) |
| Signal Processings | DSP based, resident in Input Module |
| AC Power Operating Range | 90-132 VAC or 216-264 VAC, 50/60 Hz |
| AC Input Connector | Neutrik PowerCon (NAC 3MPA) |
| AC Loop Through Connector | Neutrik PowerCon (NAC 3MPB) |
| AC Current Requirements | 6A per system at 120V, 3A per system at 240V |
| Enclosure | 25/15 mm, 11-ply birch plywood |
| Suspension / Mounting | Optional VRX-AF line array frame kit, 10mm forged eyebolts or internal dual angle 36mm pole mount cup for pole or tripod mounting |
| Finish | Black DuraFlex™ finish |
| Grille | Powder coated, black, 16-gauge perforated steel with with acoustically transparent foam |
| Net Weight (each) | 24 kg (52 lb) |
| Optional Accessories | VRX-AF: Suspension array frame |
| Outputs | 1 x XLR |
| System Type | Constant Curvature 12″ Two-Way Powered Line Array System |
| Nominal Impedance | NA – amplification is integrated |
Customer Reviews
Related Products
ELECTRO VOICE EKX 112 Speaker
Order This Via WhatsAppEKX 112 EV Speaker
The EKX 112 EV Speaker is a high-quality and versatile audio device that delivers exceptional sound performance and durability. Designed for both live sound reinforcement and installation applications, this speaker offers powerful and clear audio reproduction. With its rugged construction, advanced features, and portable design, the EKX-112 EV Speaker is an excellent choice for musicians, DJs, and audio professionals seeking reliable and professional-grade sound reinforcement.

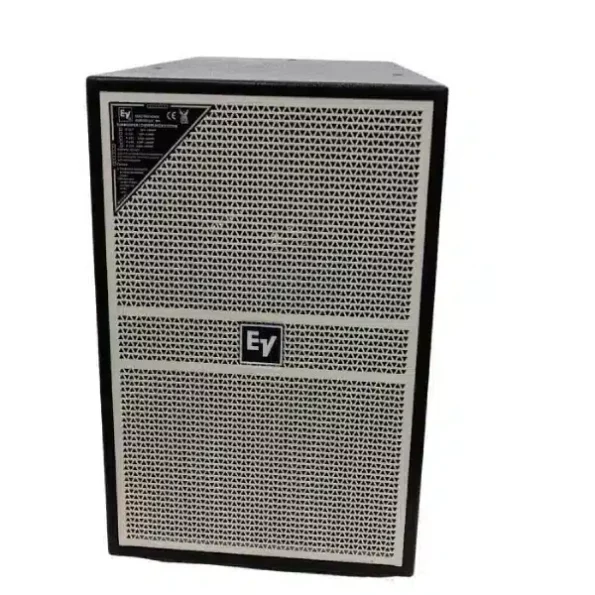

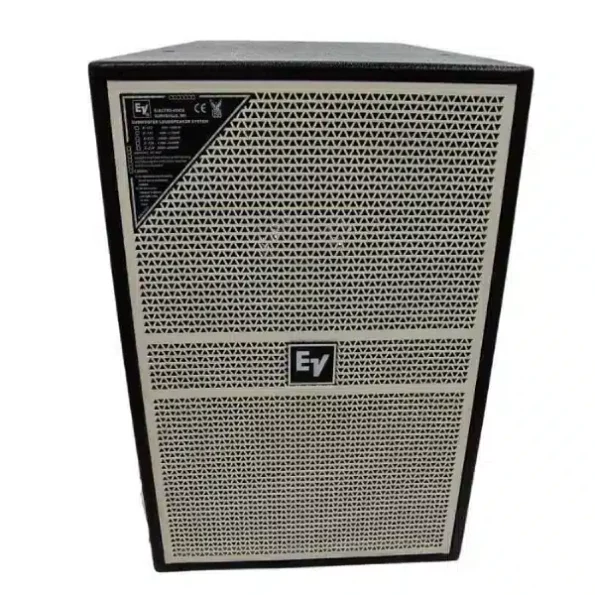

EV E115 Midrange Speaker
