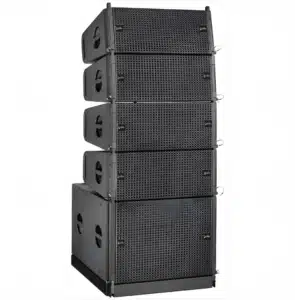

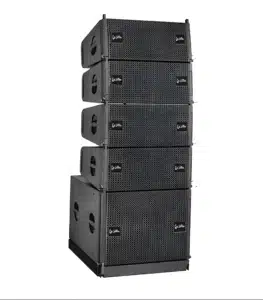

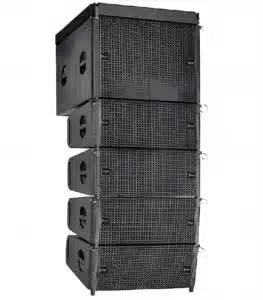

Thunder Sound TS2212 Line Array

Key Specifications:

1. Frequency Range:
   • Covers a wide frequency spectrum of 65Hz to 18kHz ±3dB, delivering deep bass and crisp high frequencies for excellent sound clarity and coverage.
2. Power Handling:
   • Low Frequency (LF): Rated at 700W RMS, with peak power up to 2800W for powerful bass performance.
   • High Frequency (HF): Rated at 100W RMS, peaking at 400W, ensuring smooth and detailed high-frequency reproduction.
3. Sound Quality:
   • Sensitivity:
     • LF: 103dB (1W/1M)
     • HF: 105dB (1W/1M)
       This guarantees excellent sound clarity and projection.
   • Maximum SPL: Achieves up to 135dB (Peak), making it suitable for high-output applications in large venues.
4. Drivers:
   • Low-Frequency Drivers: Two 10-inch (260mm) neodymium woofers with 75mm (3-inch) voice coils for powerful and accurate bass reproduction.
   • High-Frequency Driver: 75mm (3-inch) neodymium compression driver with a titanium diaphragm for precise and bright treble.
5. Coverage & Connectivity:
   • Dispersion: Offers an 80° horizontal and 10° vertical coverage, ensuring even sound distribution across large areas.
   • Connections: Equipped with 2 NL4MP Neutrik connectors for secure and reliable audio signal transmission.
6. Build & Design:
   • Constructed from durable birch plywood and finished with a textured, high-density polyurethane coating for enhanced durability against wear and tear.

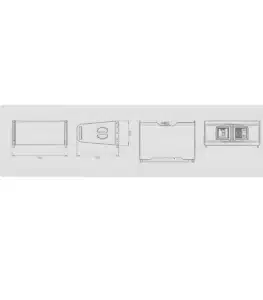

   • Compact and portable dimensions: 700mm x 310mm x 520mm.
   • Lightweight design: Weighs 38kg, making it portable and easy to handle.
7. Integrated Amplification:
   • Features a built-in DSP module delivering 900W RMS at 8 ohms, ensuring efficient power management.
   • Powered by a Class D switching-mode amplifier, offering high efficiency and low power consumption.

Applications:

The Thunder Sound TS2212 Line Array is suitable for:

• Large venues and stadiums.
• Outdoor music festivals.
• Houses of worship.
• Permanent installations in theaters or auditoriums.
• Touring sound systems.

This line array is the perfect combination of durability, portability, and exceptional sound quality, designed to meet the demands of both professional audio engineers and performers.
